Technical Specification:

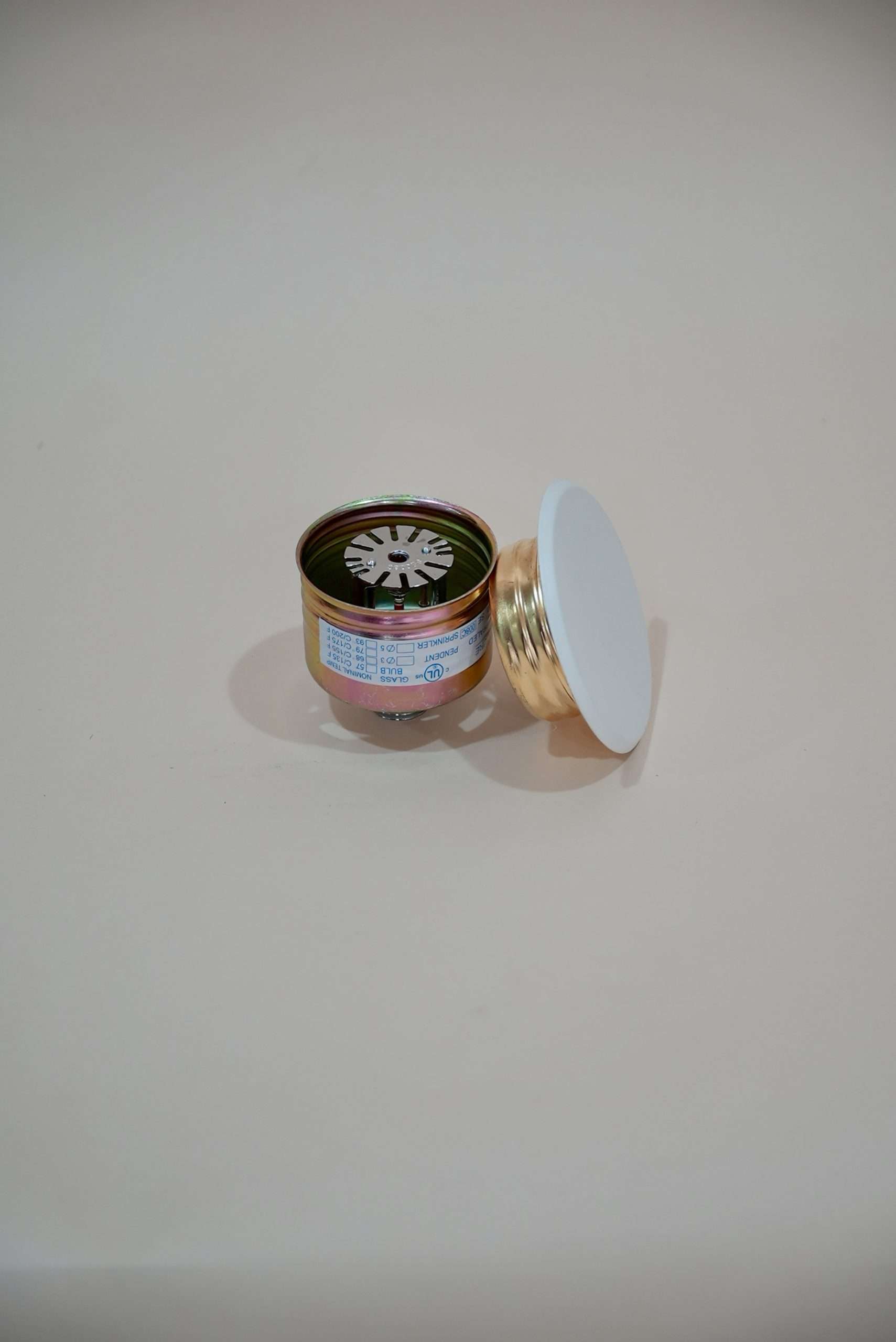

Model & Sprinkler I.D. No.: SE007C & SE008C
Style: Concealed Pendent
Response & Bulb Nominal Dia. SE007C, SE008C – Quick response, Ø3mm
Temperature Classification: SE007C – Ordinary & SE008C – Intermediate
Nominal Temp. Rating: SE007C – 135⁰F / 57°C, 155°F / 68⁰C & SE008C – 175⁰F / 79°C, 200°F / 93⁰C Max. Ambient Temp. Allowed²: SE007C – 115⁰F / 46°C, 135°F / 79⁰C & SE008C – 155⁰F / 68°C, 180°F / 82⁰C
Max. Recommended Ambient Temp³: SE007C – 100⁰F / 38°C, 100°F / 93⁰C &
SE008C – 150⁰F / 65°C, 150°F / 65⁰C
Glass Bulb: SE007C – Yellow, Red & SE008C – Yellow, Green
Thread Size (optional): NPT 1/2 or R 1/2
Nominal Orifice Size: ½ INCH
Nominal K-factor¹: 5.6 (U.S.) / 80 (metric)
Max. working pressure: 175 psig / 1.2 Mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500 psig (3.4MPa)
Min. Operating Pressure: 7 psig / 0.048 Mpa (0.48 bar)
Sprinkler Finish (optional): Natural Brass or Chrome Plated
Listings and Approvals: UL (United States)
