Technical Specification:

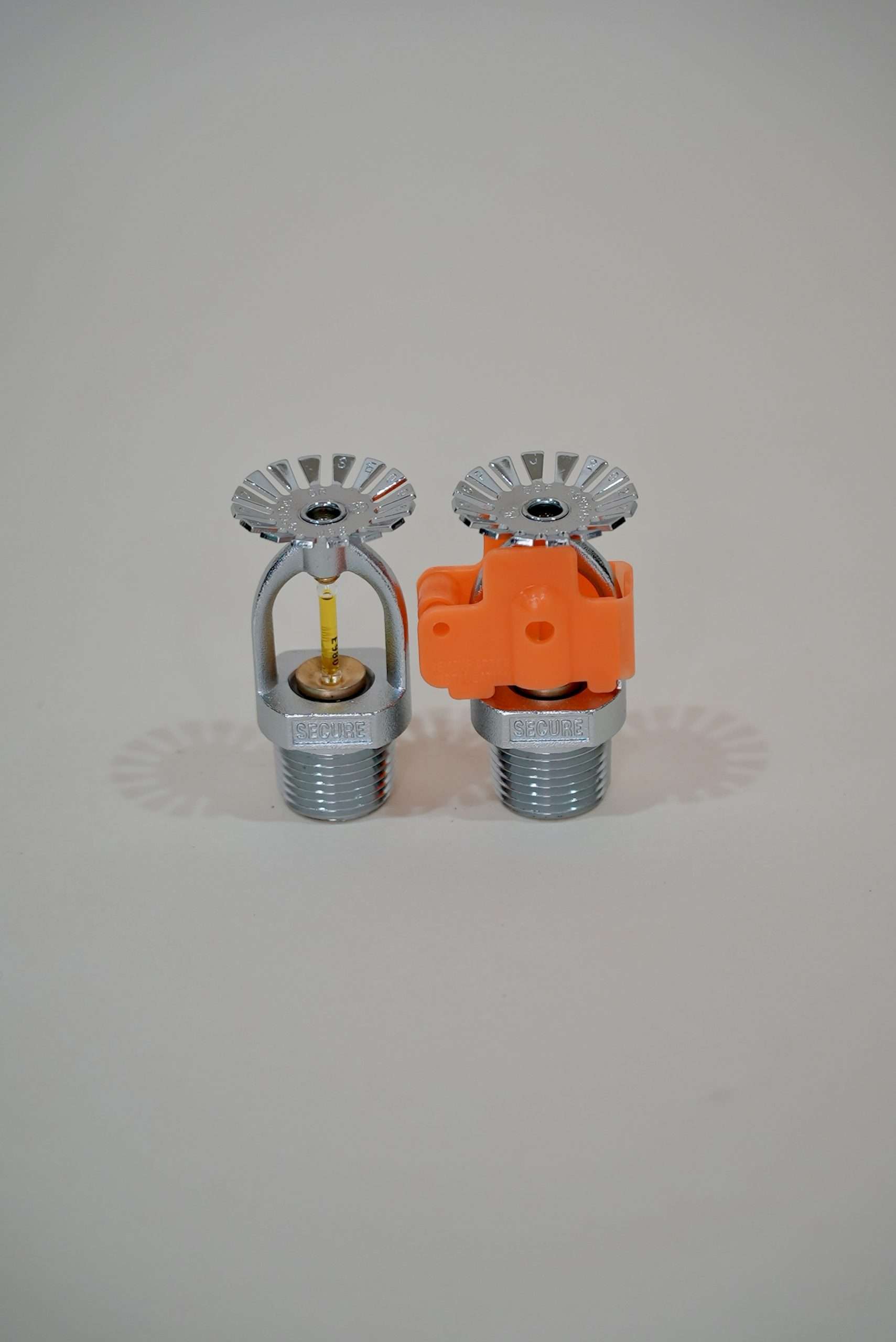

Model & Sprinkler I.D. No.: SE005P & SE006P
Style: Pendent
Response & Bulb Nominal Dia. SE005P, SE006P – Quick response, Ø3mm
Temperature Classification: Intermediate
Nominal Temp. Rating: SE005P – 175⁰F / 79°C & SE006P – 200⁰F / 93°C
Max. Ambient Temp. Allowed²: SE005P – 155⁰F / 68°C& SE006P – 180⁰F / 82°C
Max. Recommended Ambient Temp³: SE005P – 150⁰F / 65°C & SE006P – 150⁰F / 65°C
Glass Bulb: SE005P – Yellow, & SE006P – Green
Thread Size (optional): NPT 1/2 or R 1/2
Nominal Orifice Size: ½ INCH
Nominal K-factor¹: 5.6 (U.S.) / 80 (metric)
Max. working pressure: 175 psig / 1.2 Mpa (12 bar)
Factory Hydrostatic Test: 100% @ 500 psig (3.4MPa)
Min. Operating Pressure: 7 psig / 0.048 Mpa (0.48 bar)
Sprinkler Finish (optional): Natural Brass or Chrome Plated
Listings and Approvals: UL (United States)
